G6A

• Product Features

  UMTS, LTE ，5G NR Band
  PCB Soldering Re-flow
  Wide Operation Temperature Range -45 ~ 105℃
  Compact Package Design for PCB Applications

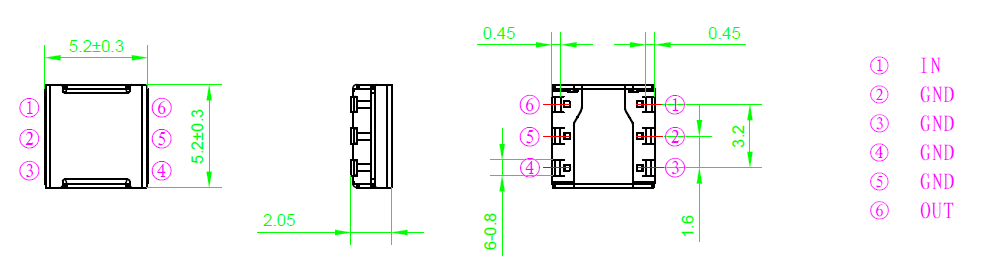

• Size Display



• Specification Parameters

  Model		Frequency (MHz) F1	Frequency (MHz) F2	Center Frequency (MHz)	Bandwidth (MHz)	Isolation （dB）MIN	INS LOSS （dB）MAXen	VSWR MAX	Power (W)	IMD (@2X43dBm) (-dBc)MAX
  G6A009											4800.0	5000.0	4900.0	200.0	16	0.80	16	10	-55
  G6A008		3400.0	3600.0	3500.0	200.0	16	0.80	16	10	-55
  G6A007		2496.0	2690.0	2593.0	194.0	16	0.60	16	10	-55
  G6A006		2300.0	2400.0	2350.0	100.0	16	0.60	16	10	-55
  G6A005		2110.0	2170.0	2140.0	60.0	18	0.50	18	10	-55
  G6A004		1805.0	1880.0	1842.5	75.0	18	0.50	18	10	-55
  G6A003		925.0	960.0	942.5	35.0	15	0.80	15	10	-50
  G6A002		859.0	894.0	876.5	35.0	15	0.80	15	10	-50
  G6A001		758.0	803.0	780.5	45.0	15	1.00	15	10	-50
