H531A

• Product Features

  UMTS, LTE Band
  PCB Soldering Re-flow
  Wide Operation Temperature Range -40 ~ 85℃
  Compact Package Design for PCB Applications

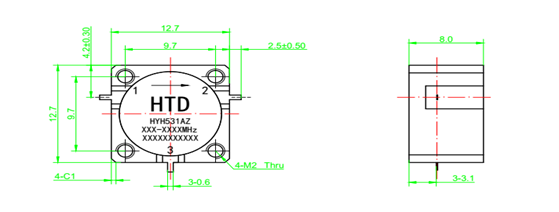

• Size Display



• Specification Parameters

  Model		Frequency（GHz） F1	Frequency（GHz） F2	Center Frequency (GHz)	Bandwidth （GHz）	Isolation （dB）MIN	INS LOSS （dB）MAXen	VSWR MAX	Power (W)	IMD (@2X43dBm) (-dBc)MAX
  H531A[2500-2700]MHz											2.500	2.700	2.600	0.200	22	0.3	1.17	100	-75
  H531A[2400-2550]MHz		2.400	2.550	2.475	0.150	23	0.3	1.15	75	-
  H531A[2300-2400]MHz		2.300	2.400	2.350	0.100	23	0.3	1.15	75	-
  H531A[2100-2200]MHz		2.100	2.200	2.150	0.100	20	0.35	1.22	75	-
  H531A[2110-2170]MHz		2.110	2.170	2.140	0.060	22	0.3	1.17	100	-
  H531A[2000-2100]MHz		2.000	2.100	2.0500	0.100	20	0.35	1.22	75	-
  H531A[1805-2025]MHz		1.805	2.025	1.915	0.220	18	0.35	1.28	75	-
  H531A[1805-1880]MHz		1.805	1.880	1.8425	0.075	22	0.35	1.17	100	-
